HT18C 1.8-ton Mini Excavator for Confined Spaces

Name: HT18C 1.8-ton Mini Excavator for Confined Spaces
Brand: Shandong Hightop Group
SKU: HT18C
Availability: InStock

원래 장소	중국
브랜드 이름	Hightop
인증	CE，EPA，ISO，TUV
모델 번호	HT18C

제품 상세정보

제품명:

HT18C 미니 굴삭기

전체 길이/배송 길이 A:

4150/2350MM

전체 폭 B:

1100 밀리미터

상단 폭 D:

960mm

지불과 운송 용어

포장 세부 사항

나무 상자 포장

배달 시간

5-8 근무일

지불 조건

L/C,D/A,D/P,T/T,웨스턴 유니온

공급 능력

달 당 100 세트

제품 설명

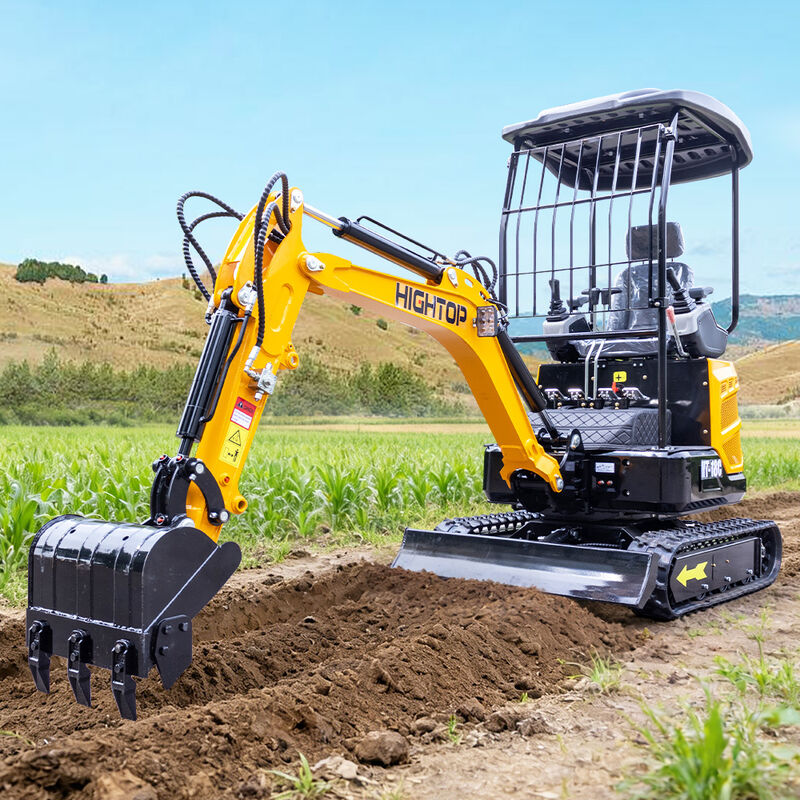

HT18C Mini Excavator

The HT18C mini excavator is a 1.8-tonne class zero-tail swing micro-excavator. With its compact and agile design and swing-out boom, it is ideal for working in confined spaces. Equipped with a high-performance engine, it offers responsive hydraulic control, excellent fuel efficiency and durability, and is widely used in landscaping, agricultural land improvement, municipal works and indoor demolition.

Technical Specifications

Specification	Value
Overall length/Shipping length A	4150/2350 MM
Total width B	1100 MM
Upper width D	960 MM
Overall height (to the top of the cab) C	2280 MM
Standard track pad width F	180 MM
Track gauge G	920 MM
Minimum ground clearance H	119 MM
Turning radius at the rear I	760 MM
Track contact length J	1150 MM
Track length K	1400 MM

Technical Parameter	Value
Quality of work	1000 KG
Bucket capacity	0.02 m³
Rated power	17 KW
Rotational speed	12 RPM
Hill-climbing ability	30°

Scope of Work

Parameter	Value
Maximum digging height a	2490 MM
Maximum unloading height b	1635 MM
Maximum digging depth c	1950 MM
Maximum digging distance d	2880 MM
Minimum turning radius e	1580 MM
Maximum height at minimum turning radius f	1620 MM
