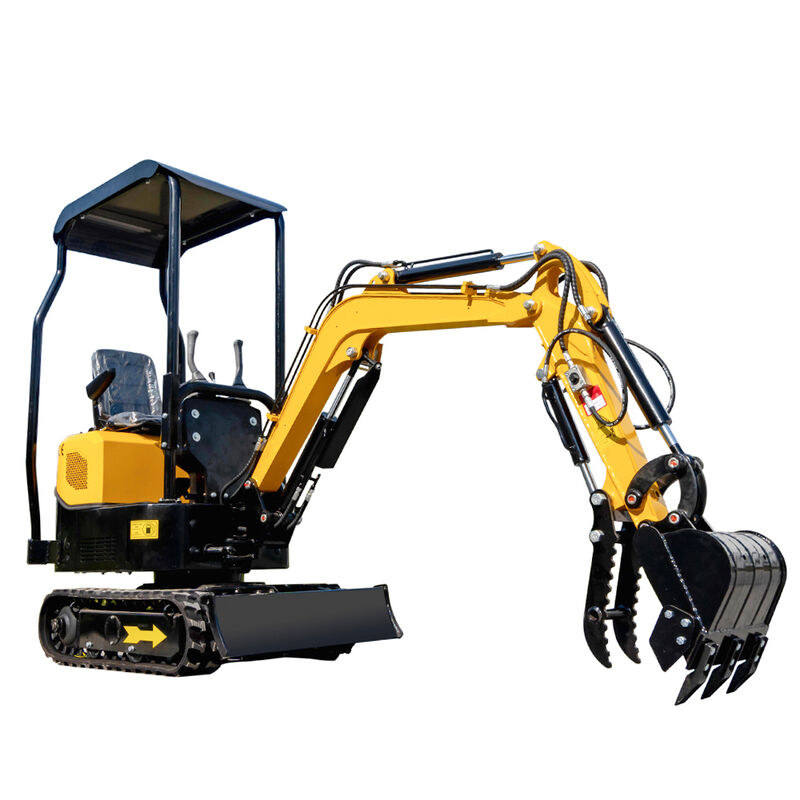

HT-10CZ 1000kg Crawler Mini Excavator

Name: HT-10CZ 1000kg Crawler Mini Excavator
Brand: Shandong Hightop Group
SKU: HT-10CZ
Availability: InStock

원래 장소	중국
브랜드 이름	Hightop
인증	CE，EPA，ISO，TUV
모델 번호	HT-10CZ

제품 상세정보

모델:

HT10CZ

무게:

1000kg

버킷 용량을 파기:

0.025cbm/120kg

엔진:

쿱(192F)

강조하다:

360 Degree Rotation Mini Excavator

1000kg Compact Excavator

Hydraulic System Crawler Mini Excavator

지불과 운송 용어

가격

CE，EPA，ISO，TUV

포장 세부 사항

나무 케이스

배달 시간

5-14 일

지불 조건

L/C,T/T,D/P,D/A,웨스턴 유니온

공급 능력

한 달에 100 세트

제품 설명

HT-10CZ Mini Excavator

The HT10CZ hydraulic crawler mini excavator features a BRIGGS & STRATTON engine, delivering superior power with energy efficiency. Available with optional boom deflection, telescopic track, and closed cab configurations. Choose from multiple color options including yellow, red, blue, white, or black, with full customization support. Certified with EPA, Euro 5, CE, and ISO standards.

Key Features

Accessible rear cover design for easy maintenance and refueling
360-degree zero-tail swing capability for enhanced maneuverability
Bailiton engine compliant with U.S. EPA environmental requirements
Versatile bucket system compatible with multiple attachments including sieve hopper, narrow bucket with teeth, tilting bucket, flat bucket, rake, hydraulic thumb clamps, looseners, and crushing hammer
Red flexible coupling for effective shock absorption
High-precision filtration system with 1μm precision and 99.9% filtration rate
Integrated oil pressure alarm system for machine protection
Advanced heat dissipation system with sealed exhaust fan
Travel motor pressure relief system for extended component life
Stabilizing and balancing system with thickened four-legged roof structure

Technical Specifications

Model	HT10CZ
Weight	1000kg
Digging Bucket Capacity	0.025cbm/120kg
Bucket Width	380mm
Engine	KOOP(192F)
Optional Engine	BRIGGS & STRATTON YANMAR
Bore Stroke	Single cylinder, fan cool
Rated Power	7kw/3000r/min
Main Pump	G5-6
Displacement	6.8ml/r
Swing Motor	SANYANG (BMRS-250)
Traveling Motor	SANYANG (BMT-245)
Travel Speed	1.5km/h

Main Dimensions

*Overall Dimension (LWH)*	2775 * 930 * 2219 mm
Wheelbase	910 mm
Total Length of Track	1230 mm
Platform Ground Clearance	380 mm
Platform Back Turning Radius	784 mm
Chassis Width	896 mm
Track Width	180 mm
Chassis Ground Clearance	132 mm
Track Height	320 mm
