HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine

Name: HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine
Brand: Shandong Hightop Group
SKU: HT1000
Availability: InStock

원래 장소	중국
브랜드 이름	Hightop
인증	CE，EPA，ISO，TUV
모델 번호	HT1000

제품 상세정보

제품명:

HT1000 스키드 스티어 로더

최대 덤프 높이:

1610mm

Min.ground 제거:

128mm

엔진:

쿠보타 D1105/퍼킨스 403J-11

회전 속도:

3000rpm

강조하다:

KUBOTA D1105/PERKINS 403J-11 Engine Skid Steer Loader

3000rpm Rotating Speed Skid Steer Loader

1610mm Max Dump Height Skid Steer Loader

지불과 운송 용어

최소 주문 수량

1세트

포장 세부 사항

나무 케이스

배달 시간

5-14 일

지불 조건

L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram

공급 능력

한 달에 100 세트

제품 설명

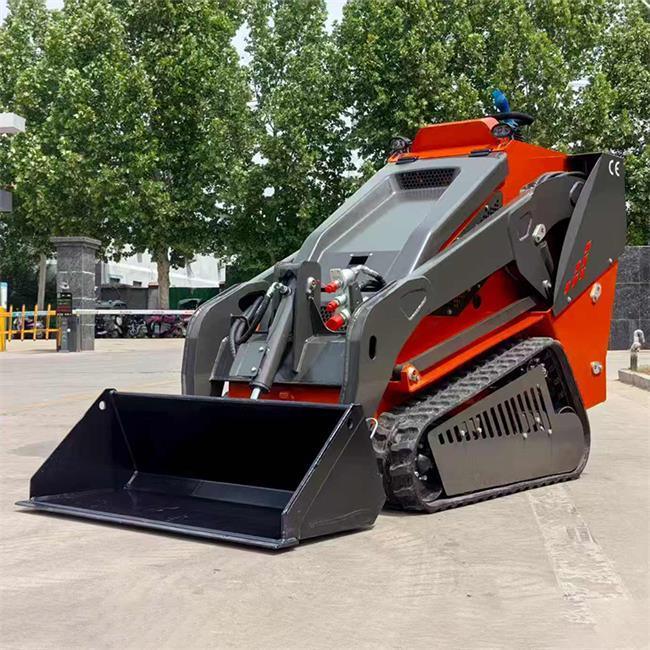

HT1000 Skid Steer Loader

Skid steer loaders are specialized wheeled chassis equipment that utilize differential wheel speeds for steering. Their compact design allows for on-the-spot turning and quick attachment changes, making them ideal for confined workspaces, uneven terrain, and applications requiring frequent task changes.

Application Areas

Construction: Material transport (sand, cement), foundation excavation, trench digging, and waste cleanup
Agricultural Production: Feed/fertilizer transport, hay stacking, land leveling, and livestock farm cleanup
Landscaping: Greenery transplanting, tree pit digging, land leveling, debris clearing, and stone transport
Municipal Engineering: Road maintenance, material paving, compaction, and underground pipeline work

Key Advantages

Compact & Agile: Operates in spaces inaccessible to larger equipment
Multi-Functional: Quick attachment changes enable diverse applications
Easy Operation: Minimal training required for operator proficiency

Technical Specifications

Specification	Value
Angle of departure	25°
Max dump height	1610mm
Min ground clearance	128mm
Max lift height of boom	2155mm
Total length (No bucket)	2278mm
Max lift height of bucket	2719mm
Track length on ground	1065mm
Total width (No bucket)	1035mm
Bucket width	1140mm
Loading weight	475kg
Machine weight	1780kg
Track width	200mm
Fuel tank capacity	33L
Travel pump flow	61.6L/min
Engine	KUBOTA D1105/PERKINS 403J-11
Rotating speed	3000rpm
Main pump	2
Max dump angle	45°
Max dump distance	605mm
Height of foot pedal to ground	228mm
Total height	1670mm
Total length (with bucket)	2835mm
Max rotary angle of bucket	81°
Turning radius (with bucket)	1528mm
Trackbase	835mm
Bucket capacity	0.14m³
Tipping ability	1100kg
Traveling speed	10km/h
Hydraulic system pressure	21Mpa
Hydraulic oil tank capacity	30L
Working pump flow	47.6L/min
Rated power	18.2KW/18.4KW (25HP)
Noise	≤93Db
Valve	4
Accessories pump	1
