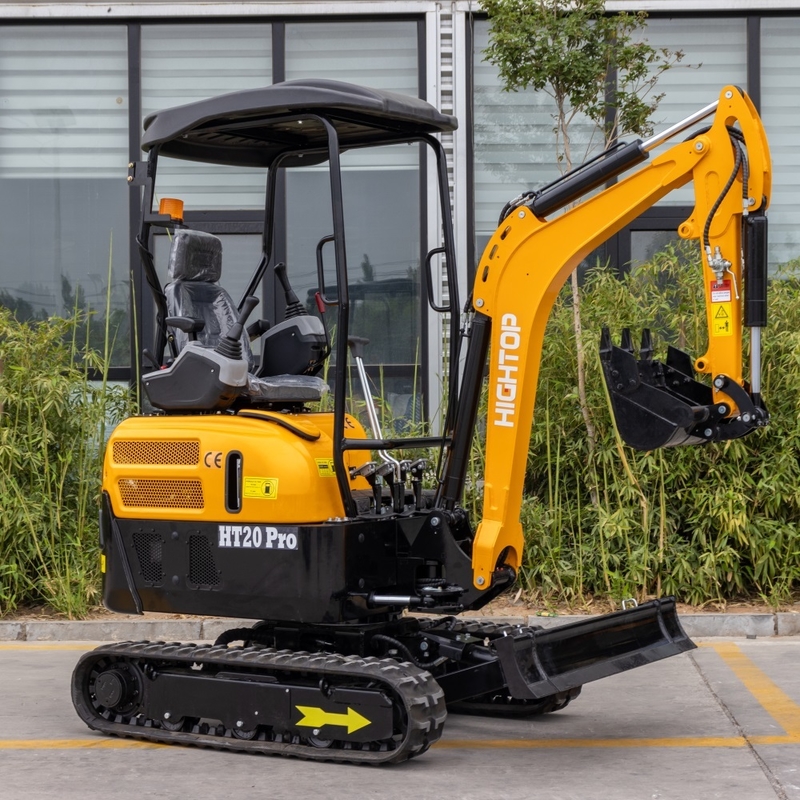

HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw

원래 장소	중국
브랜드 이름	Hightop
인증	CE，EPA，ISO，TUV
모델 번호	HT-20Pro

제품 상세정보

제품 이름:

굴착기

보증:

1 년

버킷 용량:

0.025

힘:

11.8 kw

강조하다:

HT20Pro 2 ton mini excavator

mini excavator with 0.025m3 bucket

11.8kw mini excavator

지불과 운송 용어

최소 주문 수량

포장 세부 사항

나무 케이스

배달 시간

5-14 일

지불 조건

L/C, D/A, D/P, T/T, Western Union, MoneyGram

공급 능력

한 달에 100 세트

제품 설명

HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw

The HT20Pro Hightop 2 Ton Excavator delivers professional-grade performance in a compact package, ideal for demanding construction and landscaping applications.

Key Features

Concealed Plunger Motor: Engineered for stable performance with compact structure, designed to withstand harsh working conditions and high-load continuous operation.
Side Swing Arm: Adjusts 45° right and 44° left without moving chassis, significantly enhancing attachment flexibility.
8-Way Valve Controls: Features 2 zinc-plated actuators and 4 cast aluminum foot pedals for precise, responsive operation.
Premium Engine: Kubota/Laidong powerplant delivers reliable performance for diverse work requirements.
Enhanced Arm Design: Extended inverted arm provides superior edge work capability and increased lateral digging range.
Dual-Speed Operation: Low speed for complex terrain maneuvers; high speed for efficient long-distance movement.

Technical Specifications

Transportation length	2650mm
Total width	970~1270mm
Upper width	1055mm
Overall height (cab roof)	2350mm
Standard track plate width	200mm
Track gauge	770~1070mm
Shovel height above ground	290mm
Depth of excavation of bulldozer	285mm
Tail turning radius	980mm
Track ground length	1200mm
Track length	1520mm
Engine	Kubota/Laidong
Maximum digging height	2875mm
Maximum unloading height	1930mm
Maximum digging depth	1995mm
Maximum digging distance	3130mm
Minimum turning radius	1670mm
Maximum height at minimum	2285mm
Working quality	1470kg
Bucket capacity	0.025m³
Working device form	Backhoe
Climbing capacity	30°
